High-quality components – in a functioning system.

  • LCS is internationally renowned as a specialist for cable crane systems and winches. However, we also specialise in the individual components required for the construction of material ropeways. Many of the components must fulfil certain features – and that for many years. In addition to pulleys and tower systems, we manufacture track rope supports and many other special parts.

The difference lies in the detail

All our components have been tried and tested over many years. Our customers can purchase them, and they are also used in our own installations and systems. Thereby, we gain additional experience and can guarantee the quality of the components with a clear conscience. Because: The quality and safety of our products is very important to us. We comply with all standards, for example, the Machinery Directive. In addition, all components adhere to the recommendations of the O.I.T.A.F. All parts are developed according to the modular principle and are compatible with each other. This means that they can be combined flexibly and expanded for a wide range of applications.

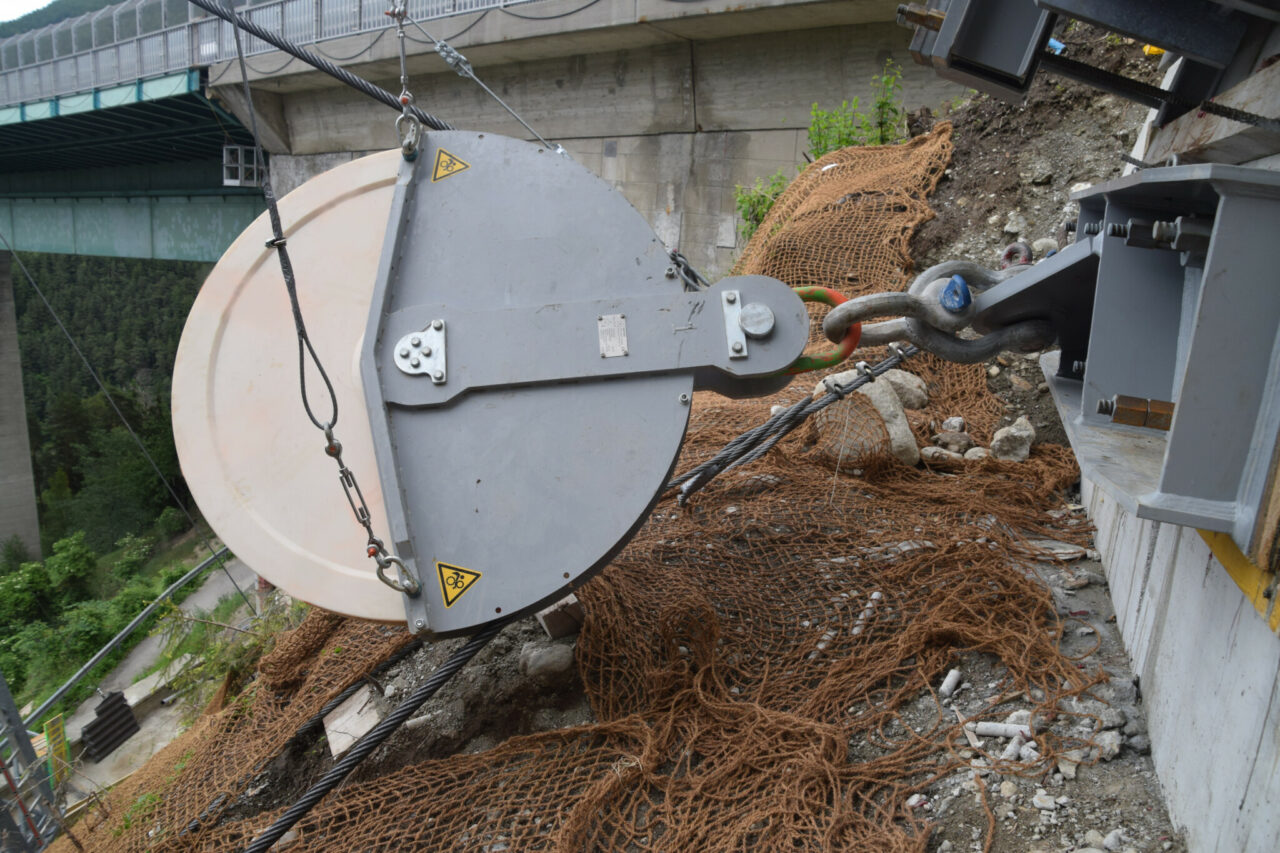

The product range and field of application of pulleys are very comprehensive. As a specialist in pulleys, we offer the suitable option for every application: from small rigging pulleys for the forestry industry or assembly purposes to universal pulleys and large deflection pulleys, our portfolio includes many different models. Universal pulleys, for example, allow highest travel speeds at maximum load.

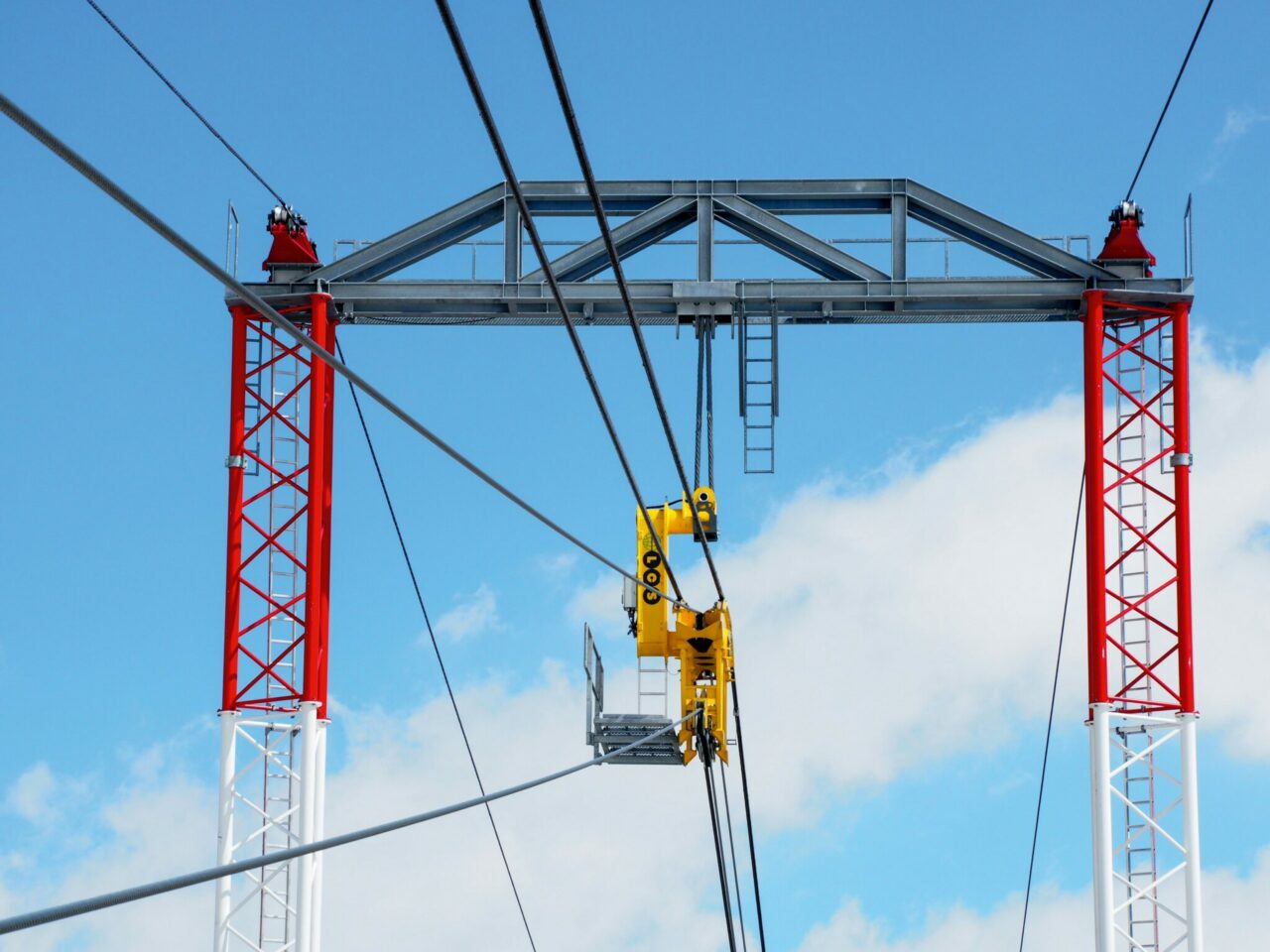

Track rope supports

Our various track rope supports can be used for material ropeways of different sizes: They are applied for small forestry ropeways as well as for heavy-duty cable crane systems. The track rope supports are available as single- and double-track versions. Our large polyamide hauling rope pulleys consist of permanently lubricated antifriction bearings. Therefore, they are maintenance-free. Alternatively, the pulleys are also available in steel design with rubber insert rings. We provide the double track rope supports with optional accessories.

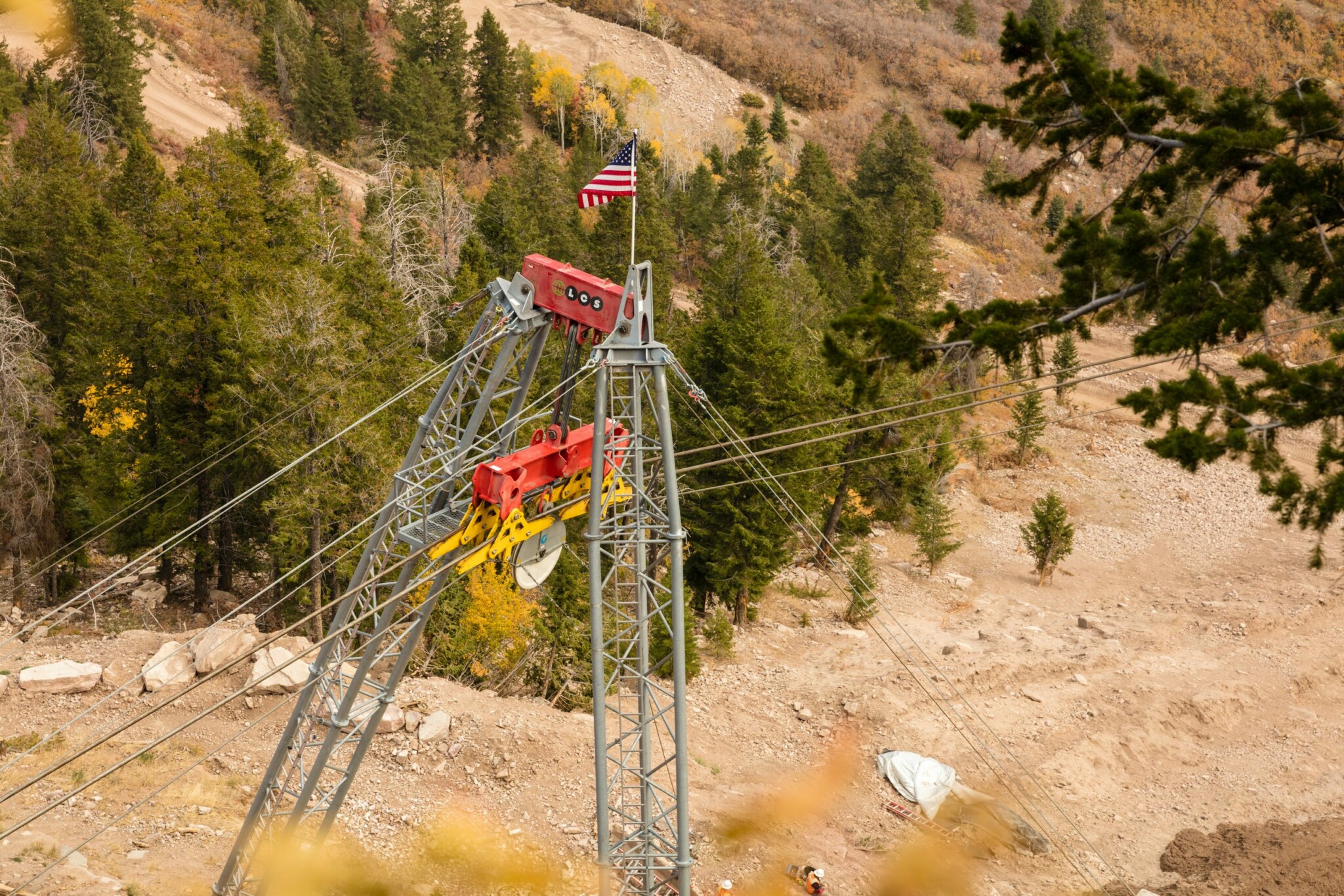

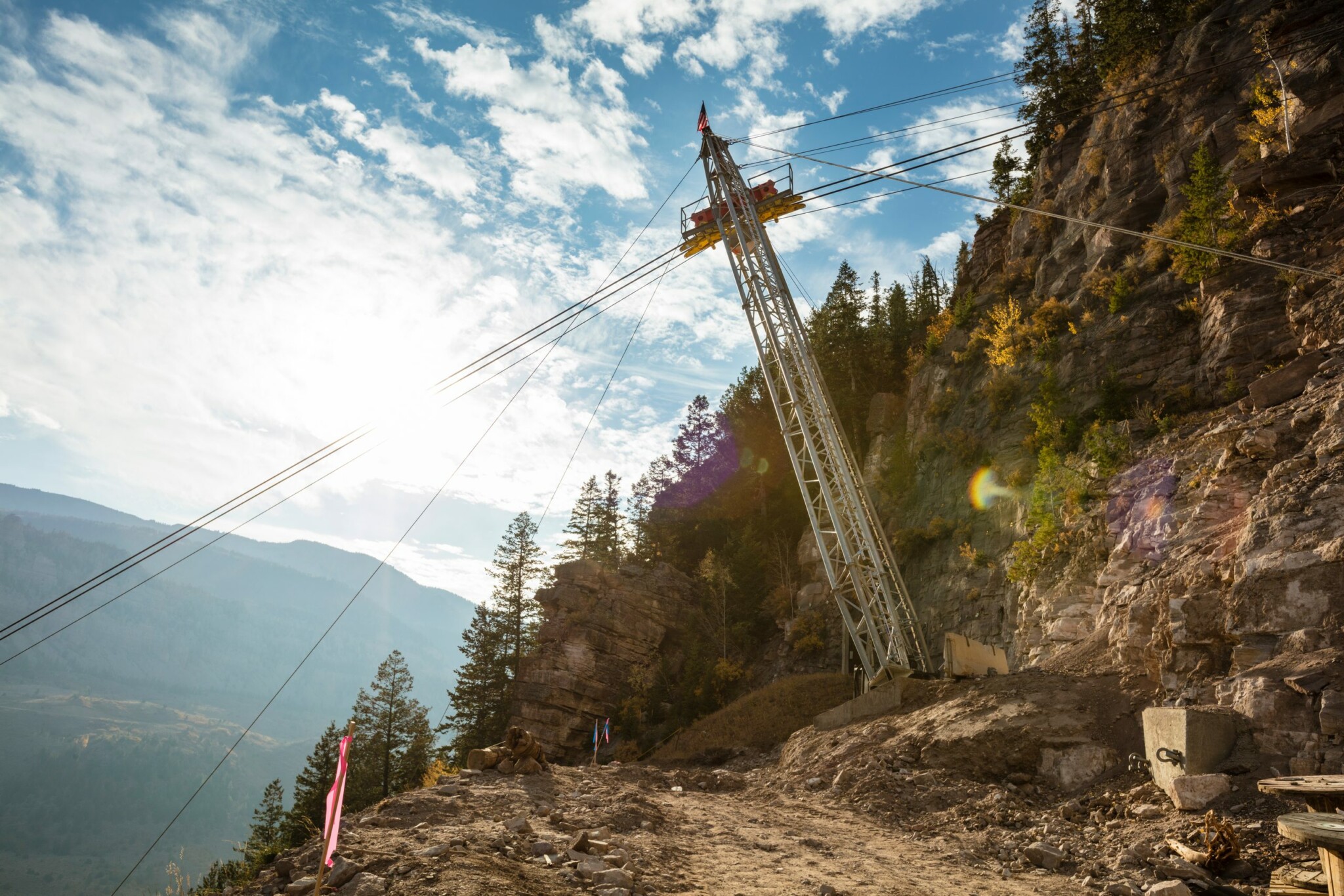

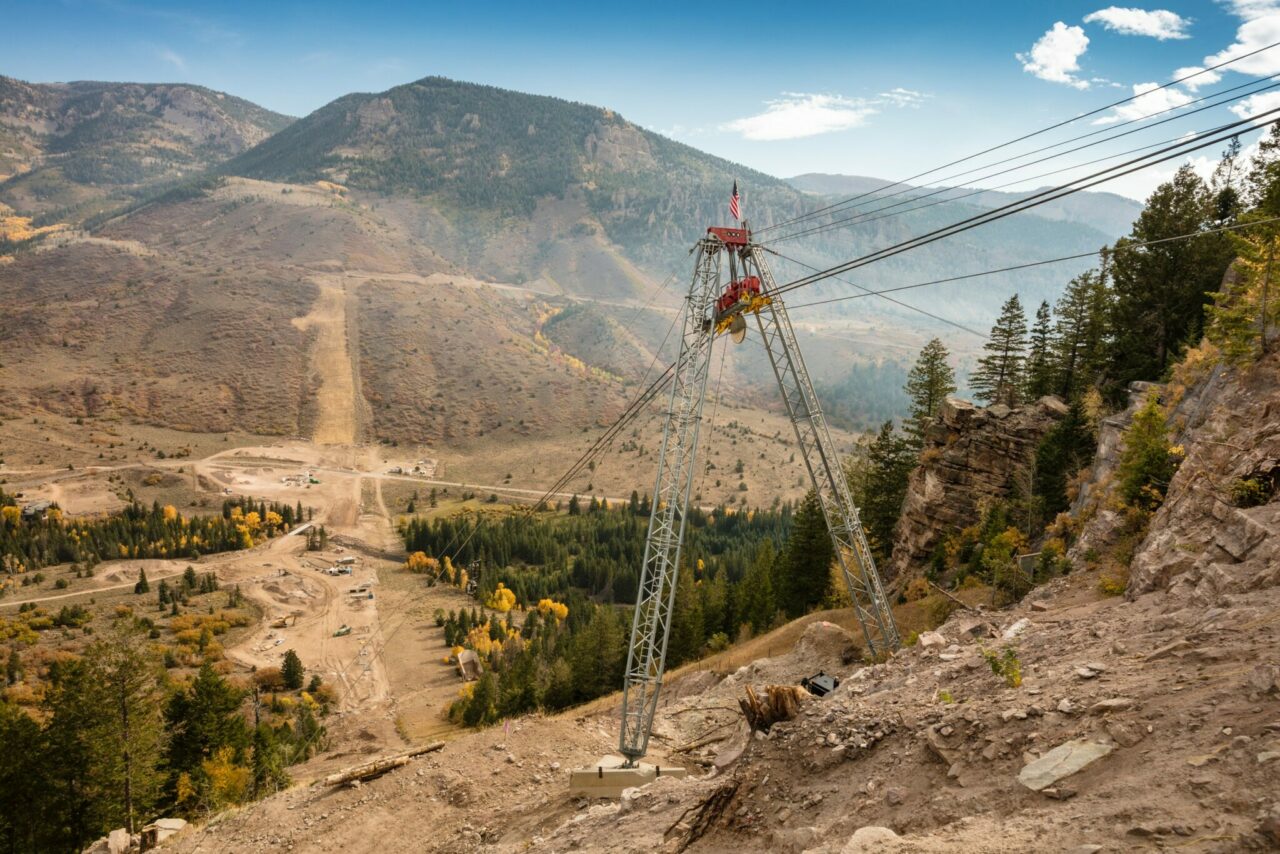

Tower systems

A wide variety of tower systems are required for different application areas. All our tower systems are designed as a modular system. This means that individual tower elements can be combined and extended to form large tower structures. The base elements are a maximum of five metres long. Due to this size, they can be easily transported in containers. All systems are hot-dip galvanised and can be applied as needle and A-towers as well as portal towers.

Our machines, components and equipment can also be rented on a long-term basis.

We are happy to provide you with information on availability and make you an offer.

Habegger manual hoists

Habegger manual hoists (HIT) are known for their excellent quality and safety. They are available in various sizes with nominal forces between 600 and 3,200 kilograms. Shear pins provide overload protection. In the Habegger manual hoist, a wire rope runs through two pairs of clamping jaws. A lever mechanism causes one pair of clamping jaws to open alternately and simultaneously grip the rope, while the other remains closed. Under load, both clamping jaws close automatically. The clamping pressure increases proportionally to the tensile load.

Habegger power-driven hoists

Habegger power-driven hoists (HIT-TRAC) guide the rope around a drive wheel. In the unloaded state it is re-emitted. The wire rope can be of unlimited length and be inserted and removed quickly and effortlessly at any point. This eliminates the need for circuitous threading from one side. A slip clutch or thermal protection preserves the wire rope hoist from overload. A limit switch also automatically switches-off the electro motor if the load is pulled against the housing. The power-driven hoists for electro motors and fuel engines are available with nominal forces between 800 and 12,800 kilograms.

LCS Cable Cranes GmbH is the official representative for wire rope hoists and accessories of the company Jakob AG, Habegger-Seilzugtechnik in Austria.

You are looking for specific components?

Contact us. We are sure that our portfolio provides a suitable solution for you.
