Croatia

Dam Hidroelektrana Lešće

First LCS parallel cable crane system operates in Croatia for the construction of a dam.

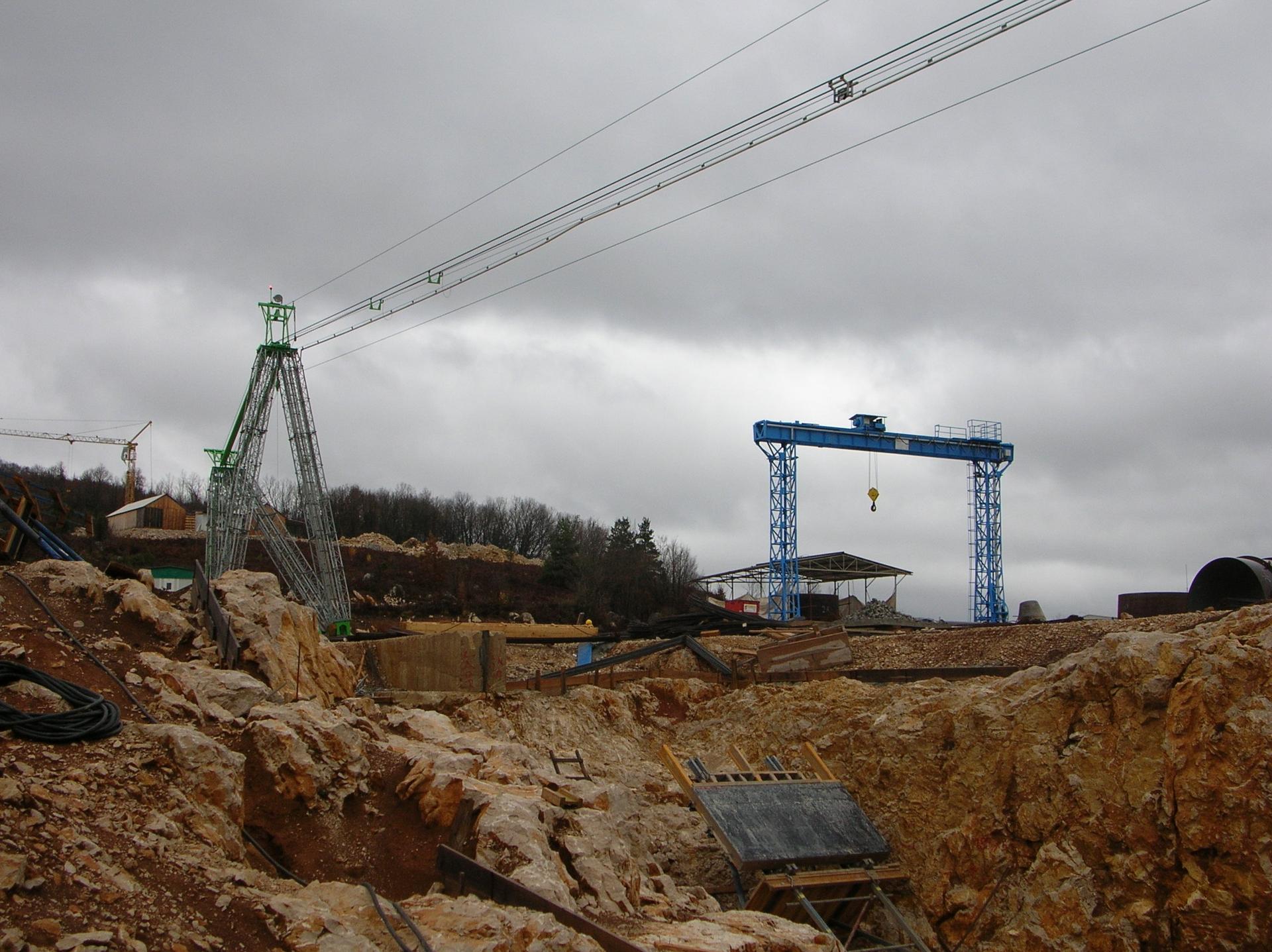

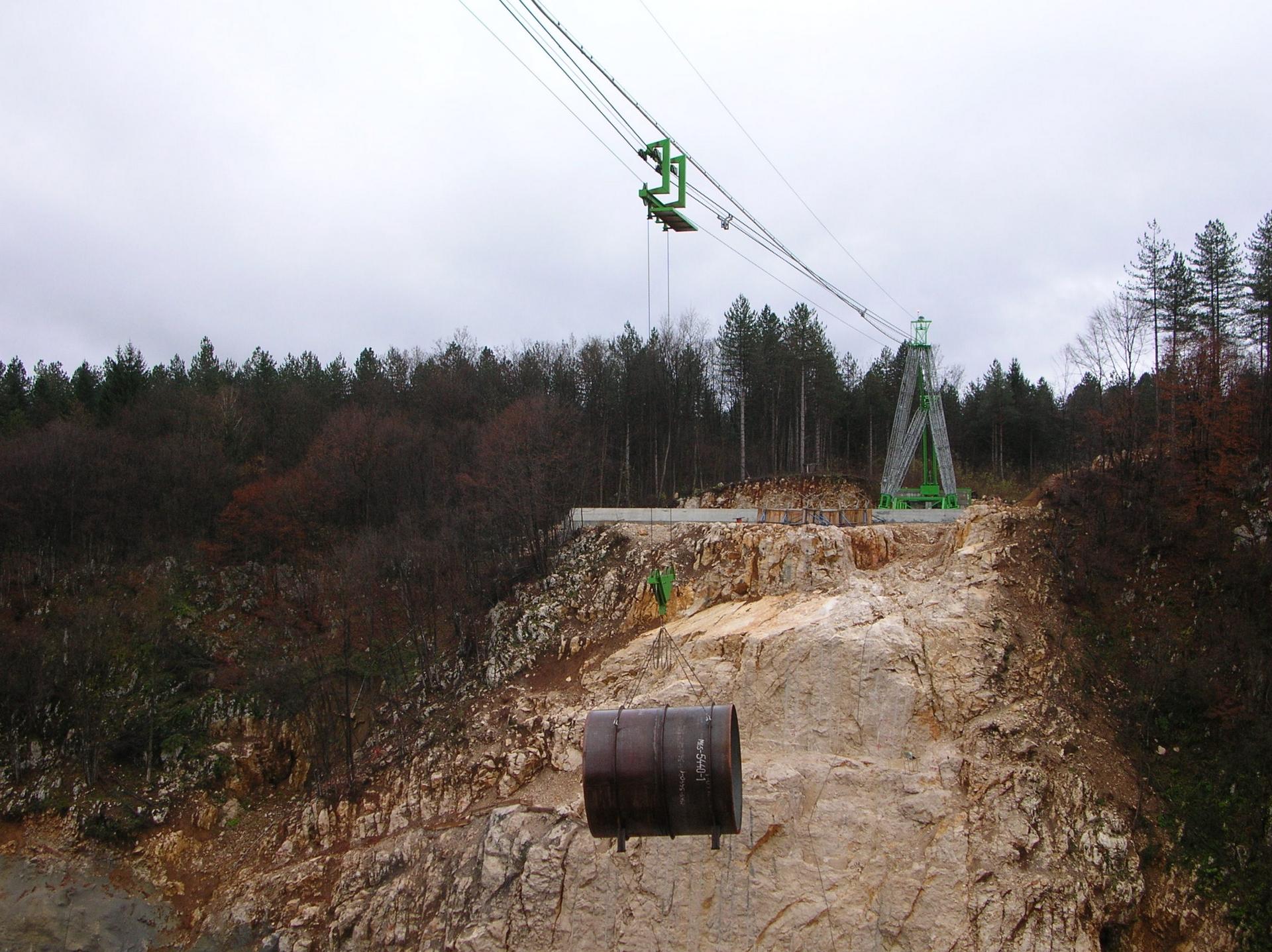

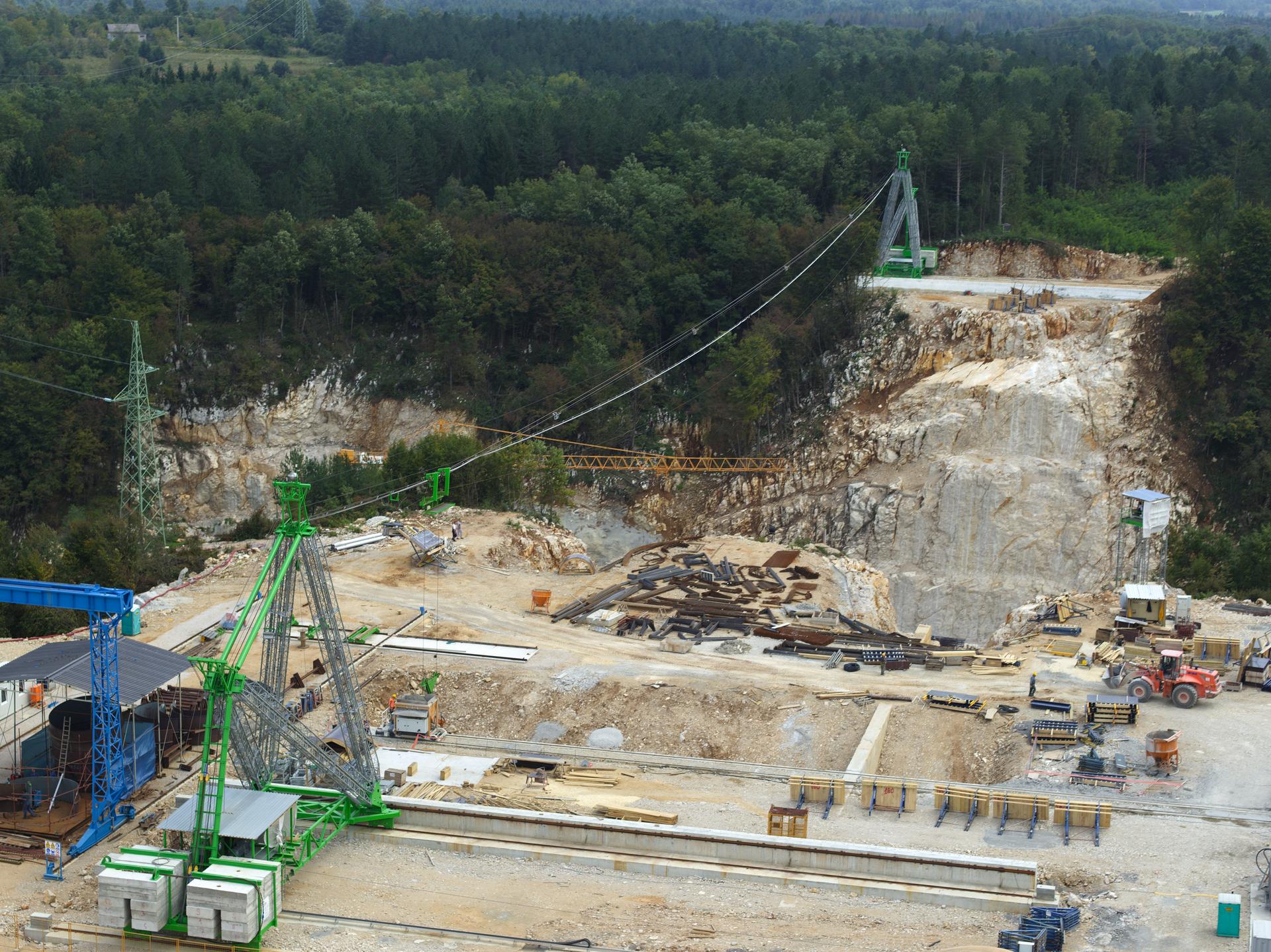

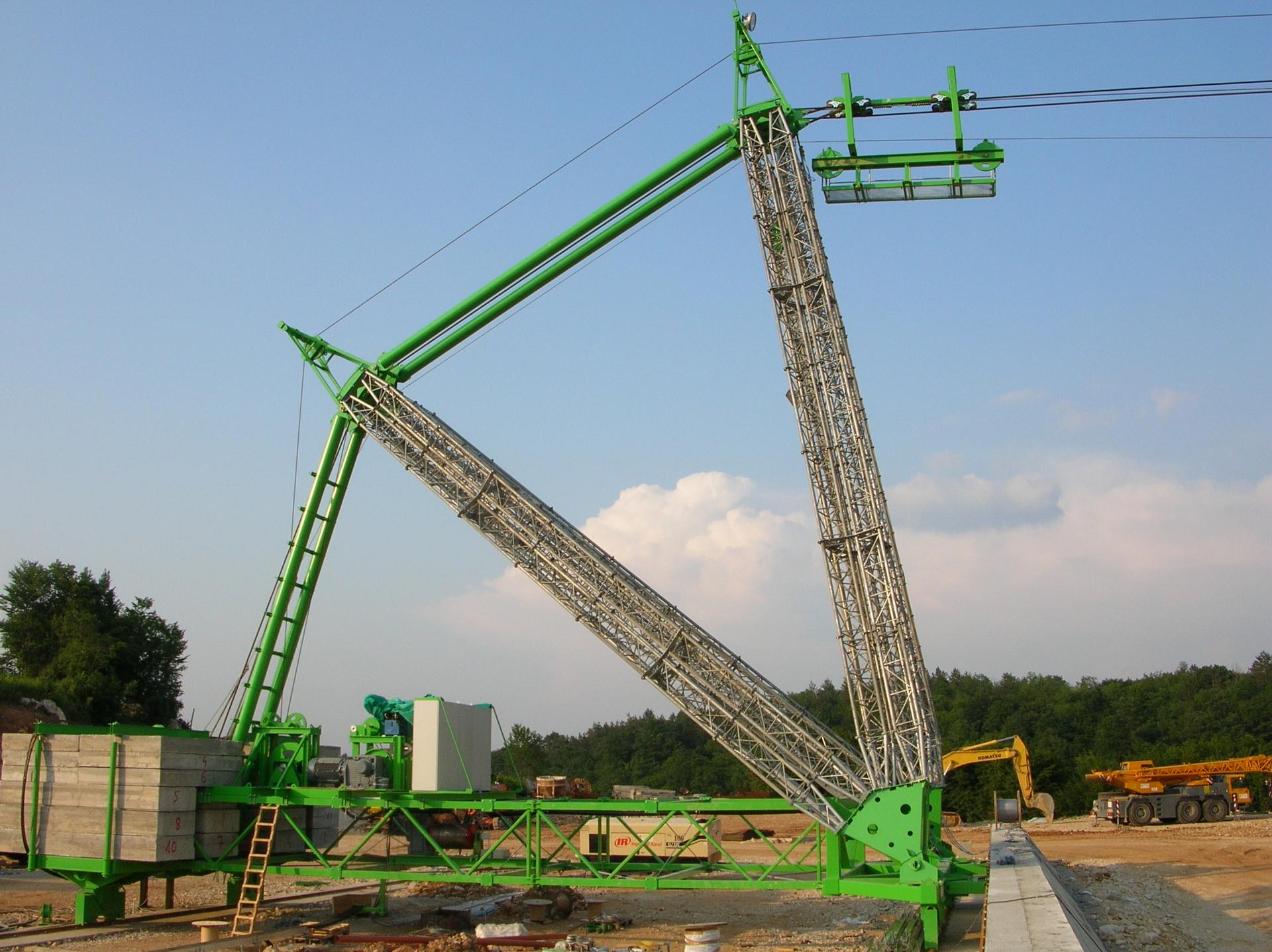

  • The dam Hidroelektrana Lešće was an exciting project due to the complex assembly of a parallel cable crane system. Two 14 m high towers, weighed down with several ton heavy weights, were moved simultaneously to transport construction material and equipment into the area of the planned dam. By means of the system a new axis of movement of the equipment resulted, which made it possible to cover a rectangular working area over the entire construction site.

    The parallel cable crane, which operated 24 hours a day, all materials could be transported to the desired location in the construction area. The system was „the heart of the construction site“.

Customer

Konstruktor inženjering d.d.

Project owner

HE Lešće

Location

Croatia

Year

2006 – 2008

Span

270 m

Lifting height

70 m

Payload

9 to

Working area

300 x 100 m

Daily cubic capacity

1.000 m³

Total cubic capacity

110.000 m³
